250mm Trading Card Box, a 3D Print

I made this top-load trading card box to store Magic: The Gathering cards I collected from centuries past. It will store around 800 cards and will fit cards having light sleeves. The lift-off lid has a 0.6mm width and length clearance gap from the main container, providing a comfortable fit. All walls are 1.2mm, giving it adequate strength with minimal material usage.

The depth is 250mm, so a printer with a larger bed is needed. I plan to create smaller models for smaller beds.

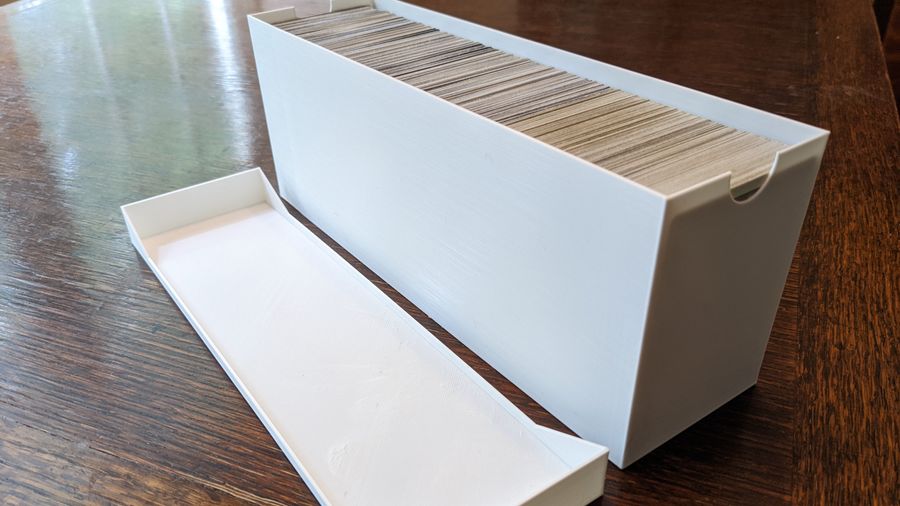

Trading card container aside the container top.Trading card container and top assembled.Example of sleeved cards fitting within the container.

Estimated Resources

  • Print Time: 16hrs, 51min (with 50mm/s print speed)
  • Material Use: 139g, 46.48m

(sliced with Ultimaker Cura 5.1)

Recommmended Print Settings

  • Resolution: 0.2mm
  • Support: none
  • Infill: 20%
  • Raft/Brim: none
  • Vertical Walls: 4
  • Horizontal Walls: 3

Printed With
